Medium Voltage Switchgears Panels

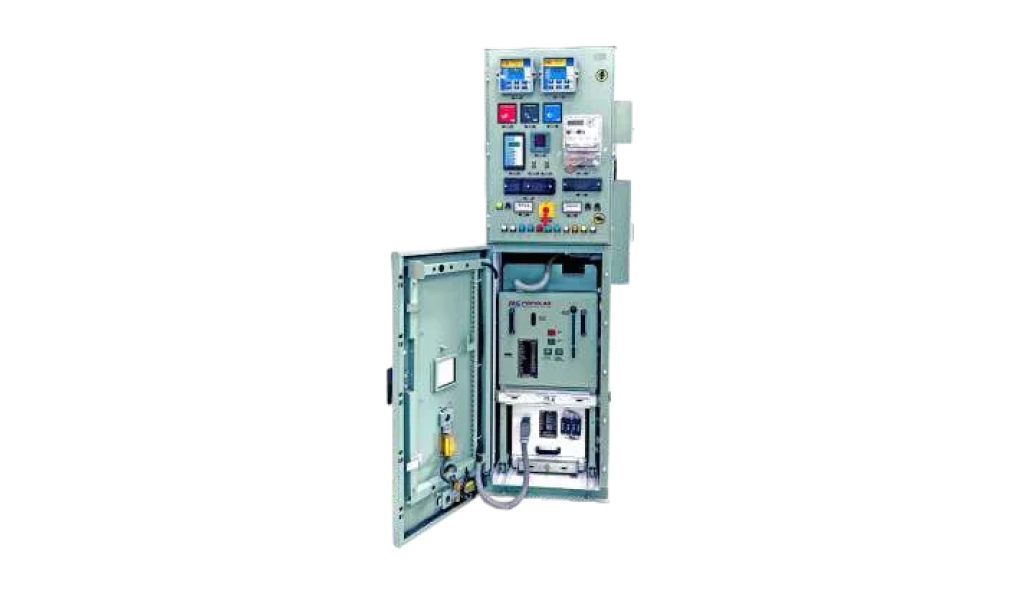

Popular Switchgears own make indoor vacuum circuit breaker.
The Circuit breaker and the panel is fully type tested as per IEC 62271-100 &200
Metal Clad construction & internal tested for 25kA for 0.1 sec & seismic test.
Current rating:125OA, 16OOA, 2000A,
Short time withstand current: 26.3 kA
Floor rolling circuit breaker.
Integral Earthing Switch (Optional)
Safety interlock for doors.
Powder coating class C4H &C5M.

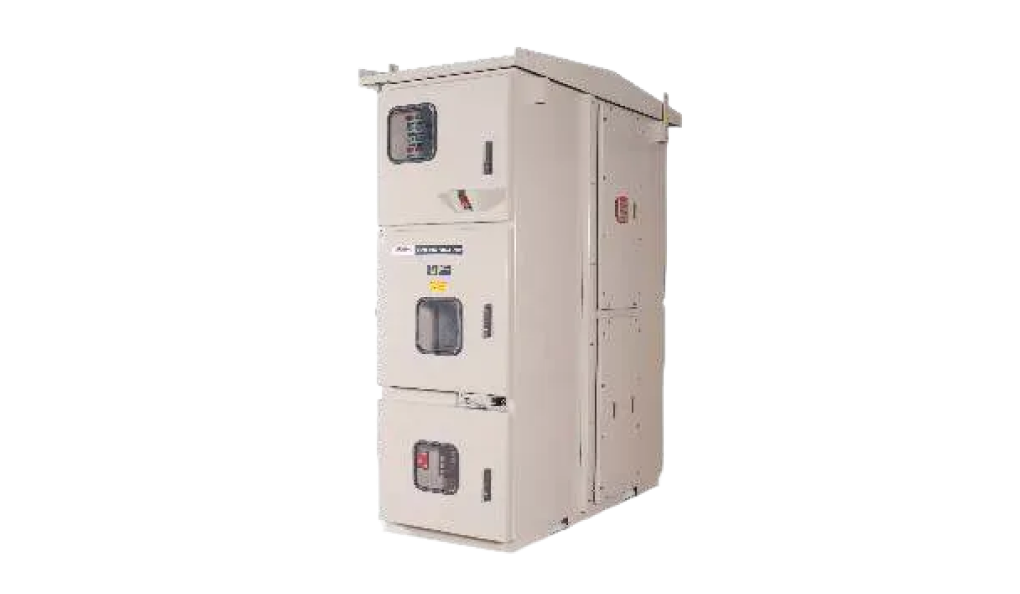

Designed & type tested to meet requirements of IEC 62271-200.
Metal clad construction & internal arc tested for 25kA for 1 sec. & seismic test.
Current rating :125OA.
Short time with stand current :20kA,26.3kA, 31.5kA.
IP5X degree of protection externally.
Integral Earthing Switch (Optional). VCB Handling Trolley, Earthing Trucks
Safety interlocks for doors.
Powder coating corrosion class C4H &C5M.

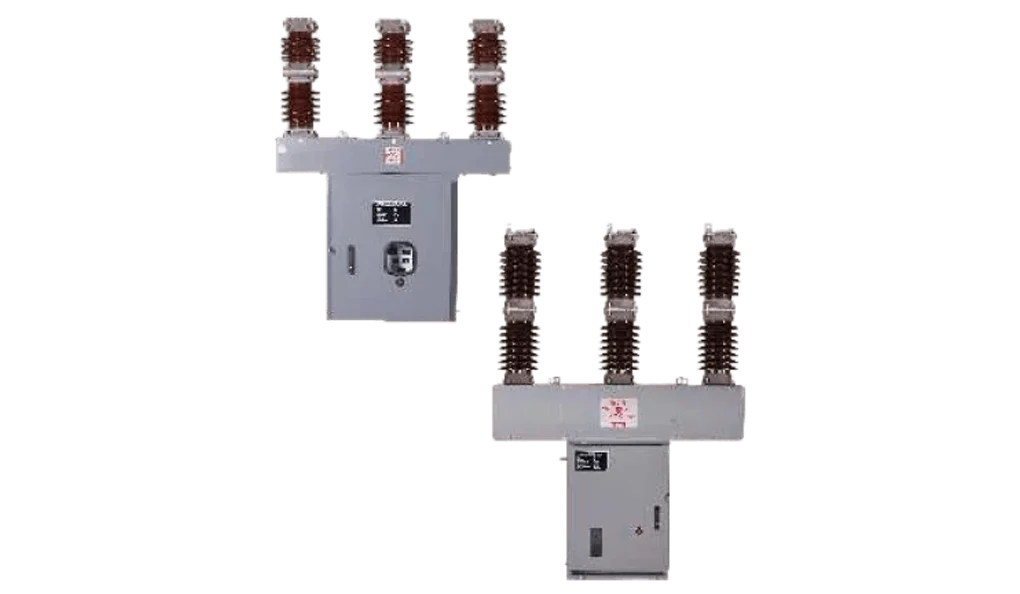

Fully type tested as per IEC62271-1 &IEC 62271-100
Qualified for E2 , C2, M2 classification
Available in Fixed and Withdraw able versions

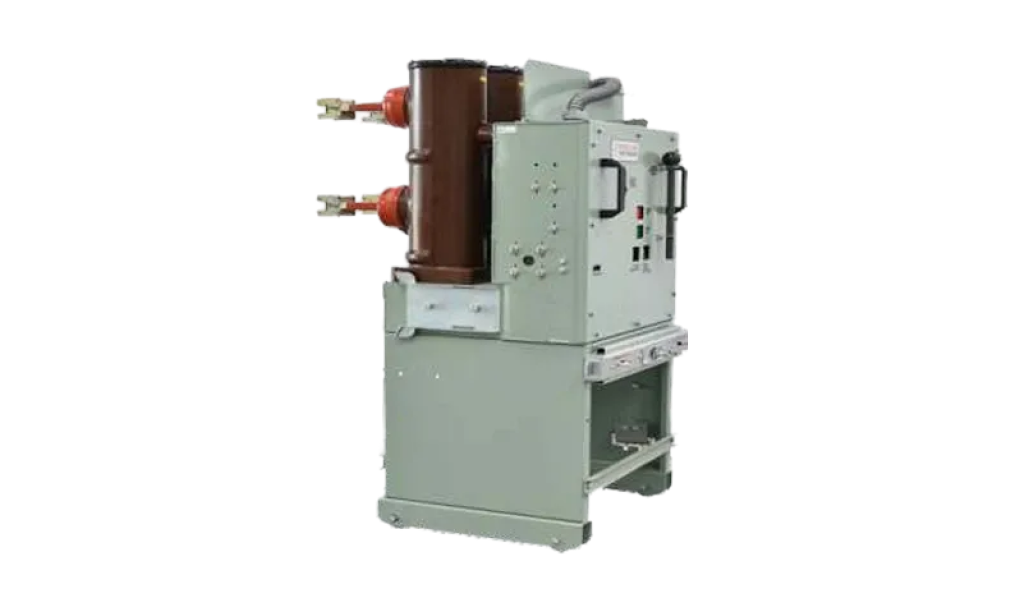

Uses Vacuum Interrupter as
arc quenching medium
Epoxy resin cast poles for added protection and longer service life
Stored energy mechanism with anti-pumping feature ensures operational safety
Designed for low maintenance and high reliability
Built-in safety and interlocking to ensure operator protection during maintenance

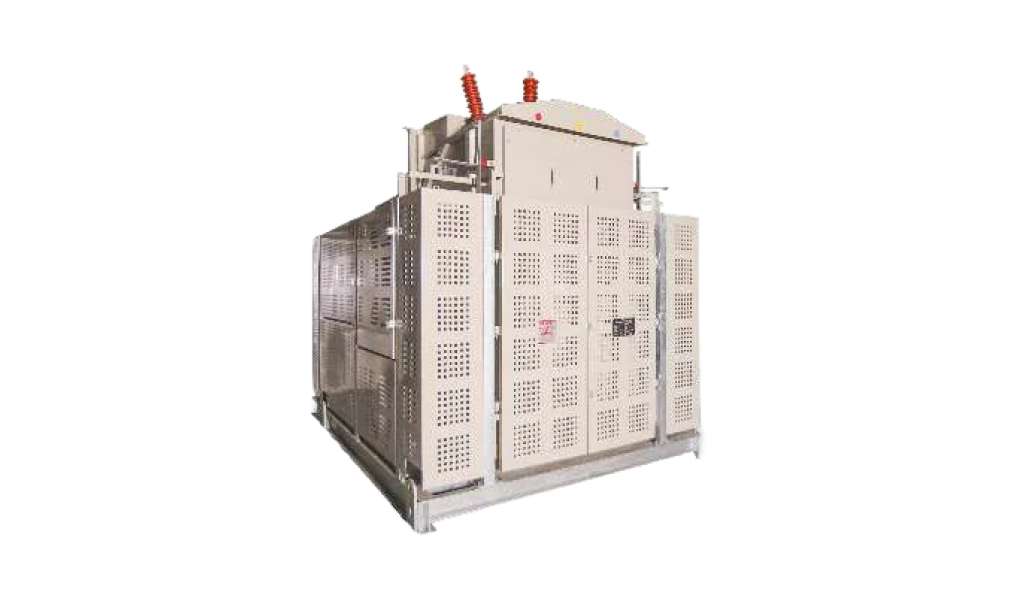

Designed for wind turbine application.
Plug & play type design.
Transformer used only corrugated fins type to save the
space of sub-station.
Reduces installation time.
Fencing powder coated to corrosion class C4H & C5M.
VCB Kiosk with metal enclosed construction & internal
arc tested for 25KA for O.5sec.
Powder coating corrosion class C4H & CSM.
Complete Unit fully assembled and tested at Works

Nashik & Vadodara

We have two fully equipped state-of-the-art manufacturing facilities All our systems are backed by a quality process.
